Hammer type nylon rivets SR

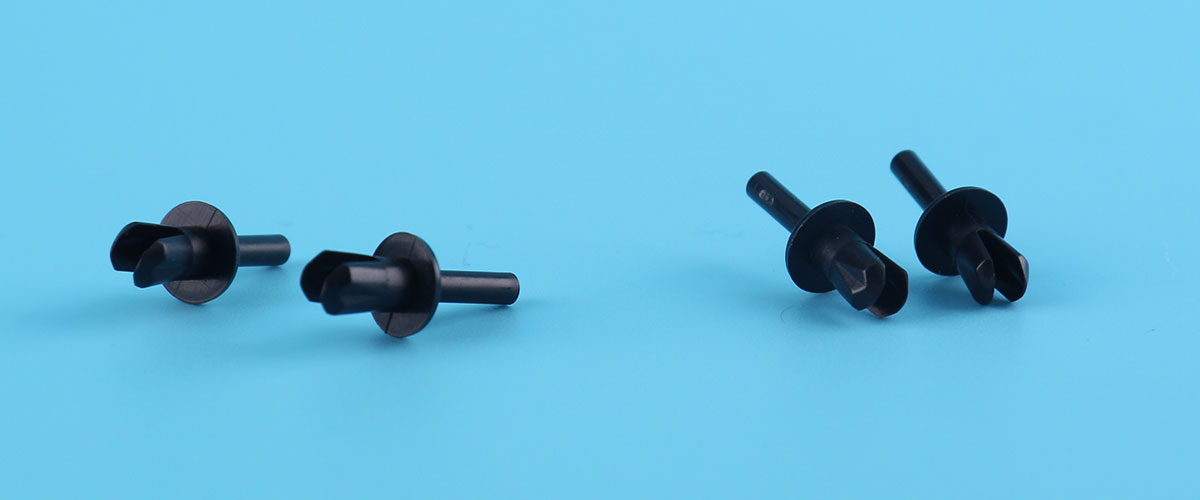

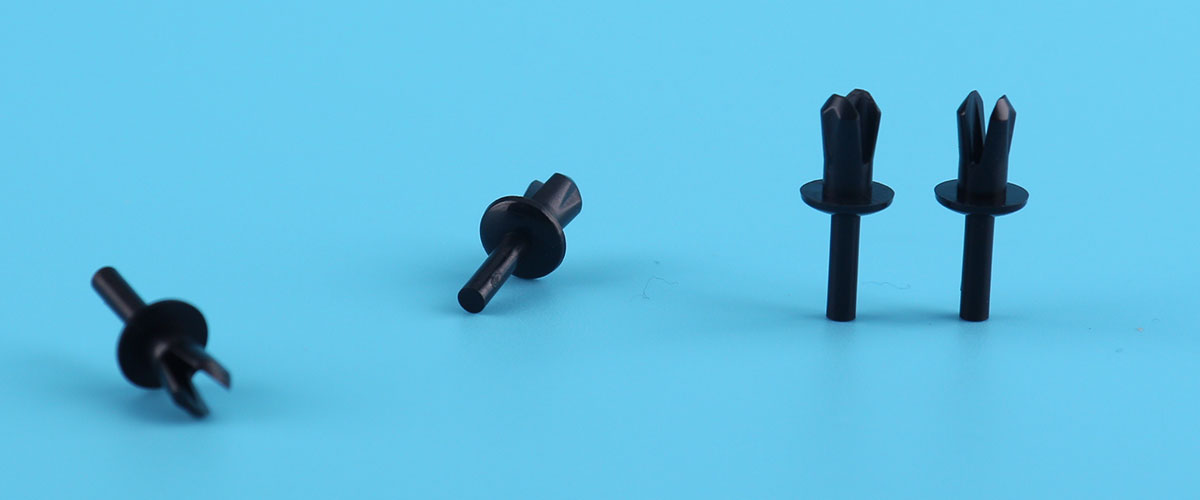

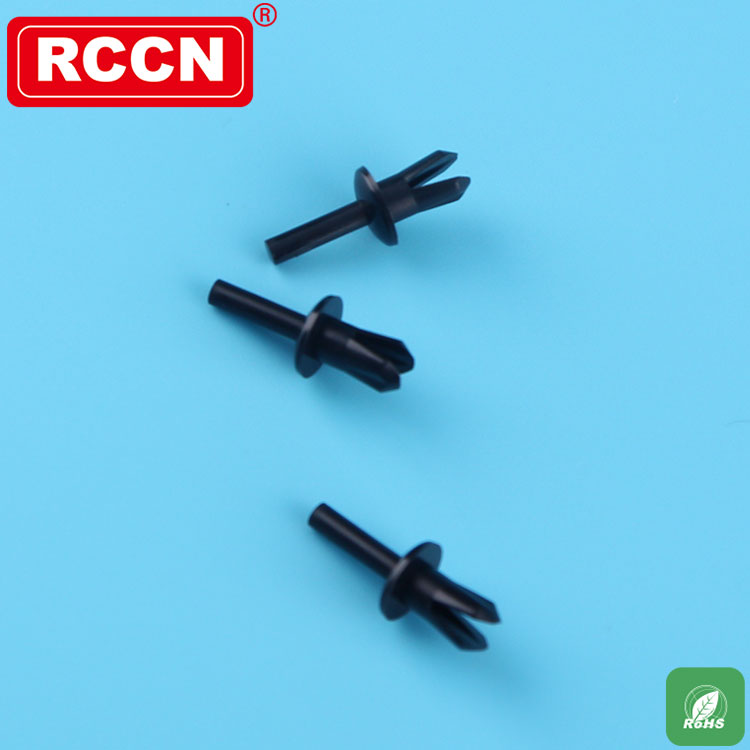

Hammer type nylon rivets

Material: UL qualified NYLON66, fire rating 94V-2, not aging.
Uses: PC board and board of the fixed, replace the screw, without tools to complete the assembly.
Features: easy to fix.
Usage: first board and fixed plate drilling, and then stuffed into the product, you can make the two panels phase together.
Thickness: 3mm minimum length of H.
Hole: Recommended aperture aperture negative tolerance 0.5-1mm openings.
Note: SR6-216 and SR-0614B for the same paragraph, the default model unified SR-0614B

Hammer type nylon rivets

Spezifikation

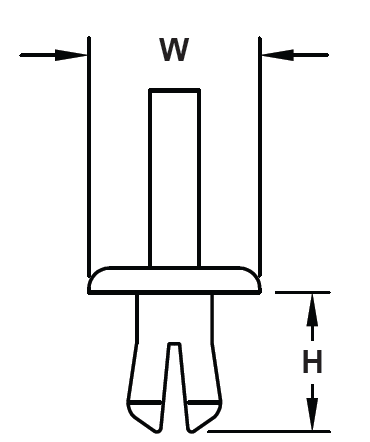

Modell Item No.	Kopf W	Blende W1	Länge H	Verpackung pcs
SR4-178	7	4.5	9.5	100pcs
SR6-511	11	6.0	10.0	100pcs
SR6-216	16	6.0	14.0	100pcs
SR5-236	10	5.0	6.0	100pcs
SR5-429	11	5.0	7.0	100pcs
SR8-1150	16	8.0	12.0	100pcs
SR8-883	13	8.0	14.0	100pcs
SR8-947	12.5	8.4	12.0	100pcs
SR9-678	16	9.0	14.0	100pcs
